Golf Simulation
Golf launch monitor
Overview

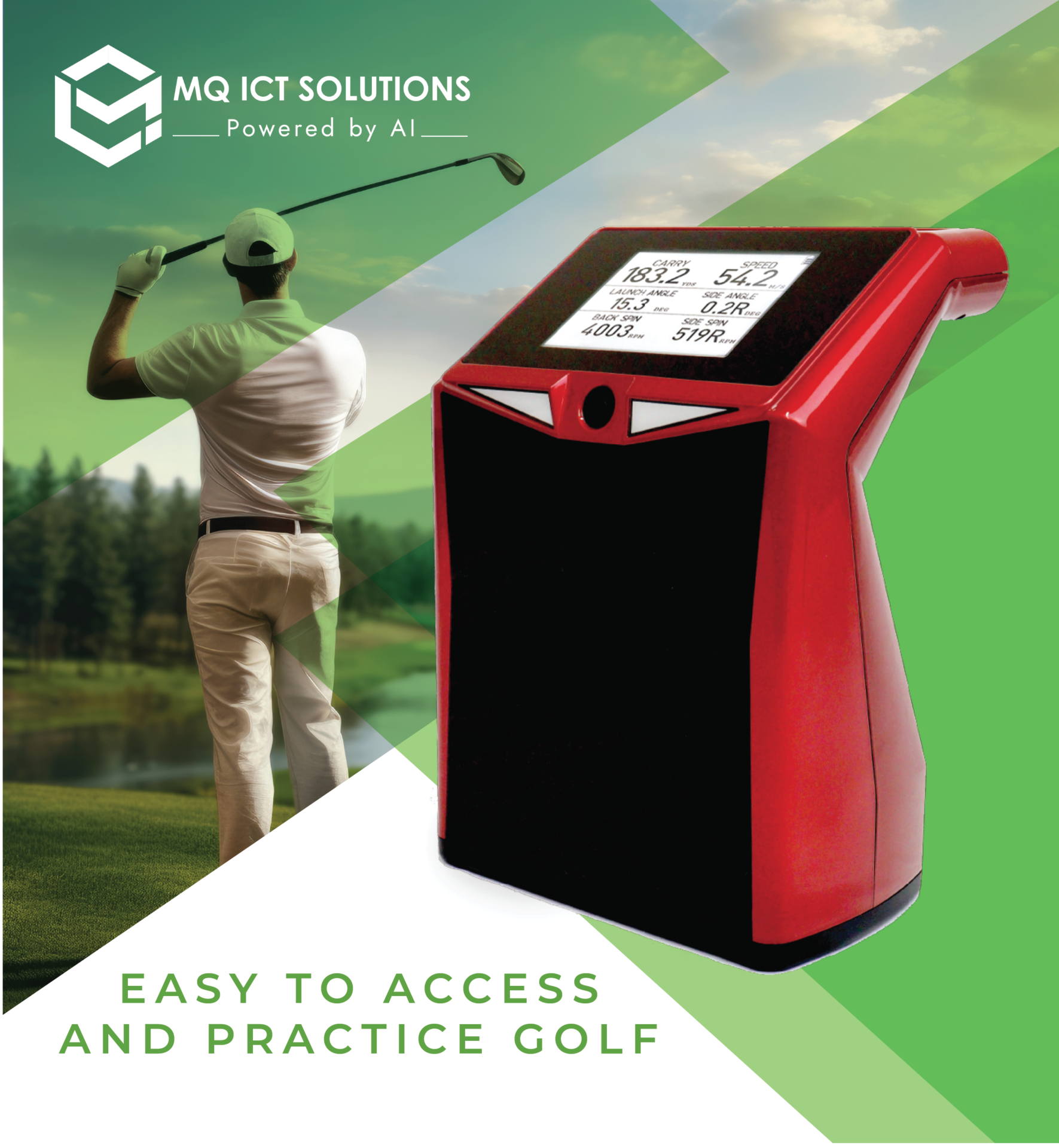

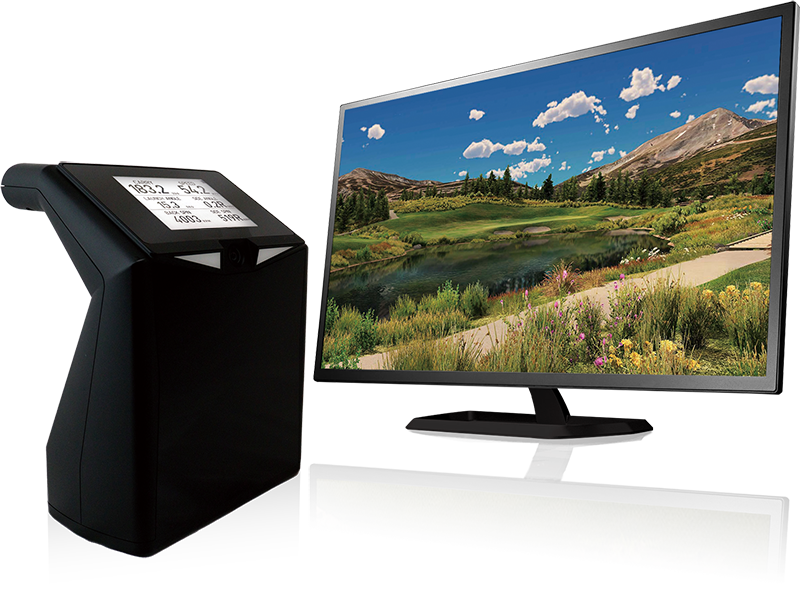

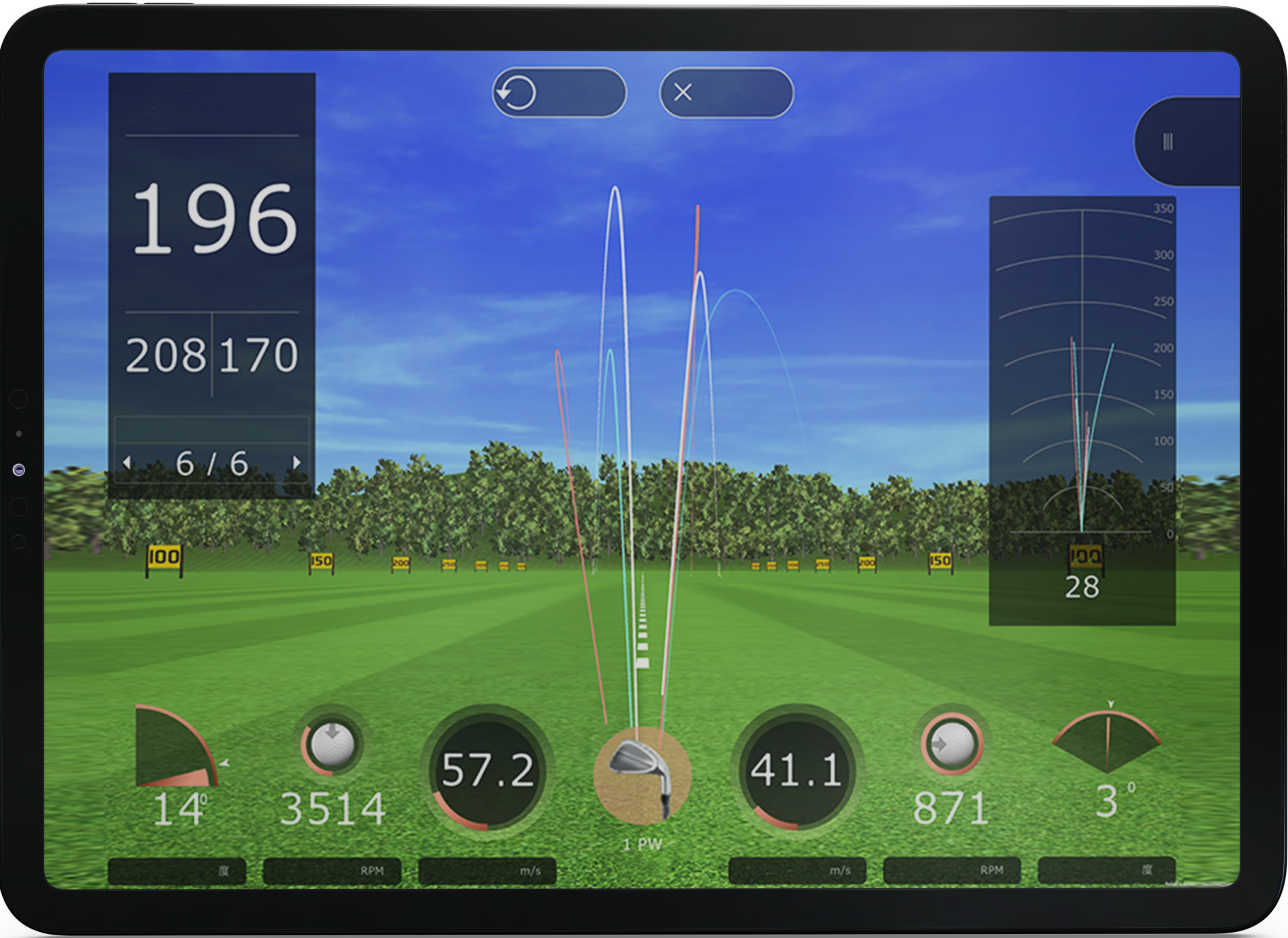

This is a type of golf measuring device that uses imaging technology, meaning it uses a camera to take a series of images of the golf ball within a few feet of impact. Ball speed, lift angle, backspin, side spin, and side angle are measured directly, while other data such as flight distance and total distance are estimated. It then creates a realistic 3D moving model of the ball.
You can use it anywhere you can hit a golf club, both indoors and outdoors. Thanks to its accuracy and excellent cost performance, device will become an indispensable tool for everyone involved in golf, including professional golfers.


Outstanding features

Accurate and Efficient
Not only does it provide accurate and detailed information, it is also a cost-effective solution, helping golfers of all levels improve their technique without investing too much.

Diversity Data
In addition to directly measuring parameters, GMQ also estimates other important data such as flight distance and total distance, providing a comprehensive view of the shot.

3D Motion Model
Not only is it a measuring device, but it also creates a realistic 3D movement model of the ball, helping players better understand the behavior of the shot.

Use Anywhere
The device's versatility allows players to use it in any location where they can hit a golf club, allowing them to train anytime, anywhere.
Wide applicantion
From beginner golfers to pros, this device promises to be an indispensable tool in improving technique and better understanding the swing. For golf instructors and courses, this is an effective solution to provide a quality training experience and add value to their services.


Specifications
- Product name: GMQ
- Sensor type: Camera
- Screen: E-ink screen 4.2inch, viewing angle: 170 degree
- Supported OS: IOS, Android, Windows
- Connection method: Wi-Fi, Ethernet
- Size mm (body): 242 x 178 x 127
- Weight (body): 1225 grams
- Power supply: 5V-4A (Adapter or backup phone charger)
- Measure parameters: Ball Speed, Launch Angle, Back Spin, Side Spin, Side Angle
- Caculated parameters: Carry/Total Distance, Distance Offline, Roll Distance, Flightpath, Clubhead Speed, Angle of Descent
- Ball speed: 1 to 200MPH
- Launch angle: to 70 degrees
- Side angle: -40 to 40 degrees
- Side spin: 0 to 4000 RPM
- Backspin: 0 to 12000 RPM
- Usage environment: Indoor/Outdoor
- Play mode: Online/Offline
- Others: Support right-handed & left-handed
A.I Trainer
Overview

AI Trainer Golf is a system that uses artificial intelligence to coach and improve golf skills through movement analysis, providing instant feedback, and personalizing training programs.
Goal: Improve golfer’s performance, reduce errors and risk of injury, and make learning and practicing golf easier and more effective.
- Technology
– Sensors and Cameras: Track player movements and locations.
– AI và Machine Learning: Analyze collected data, identify movement patterns, and provide specific suggestions for improving technique.
Solution
Movement Analysis
- High-Precision Sensors and Cameras: Use 3D sensors and high-resolution cameras to track every move in detail.
- Machine Learning and AI Technology: Analyze data from sensors and cameras to recognize motion patterns and detect technical errors.
Instant Response and Mobile Integration
- Mobile Application and Friendly Interface: Develop applications that provide instant feedback via video replays, audio and images, and sync data on the cloud.
- IoT Technology: Connect sensors and cameras to a central analytics system to provide real-time data.
Personalize the Training Program
- Long-Term Data Analysis: Collect and analyze data from multiple training sessions to identify trends and weaknesses.
- Machine Learning and Optimization: Use machine learning algorithms to optimize training programs based on player progress.
Improve Performance and Health
- Accurate Technical Suggestions and Guidance: Provides technical suggestions and guidance based on accurate analysis.
- Health and Fitness Monitoring: Integrates the player's health and fitness monitoring feature.
Feature

Identify and Understand Differences
The system identifies frame differences between user and expert movements, providing detailed and clear explanations of these differences.

Provides Intermediate Postures
The system generates intermediate positions, helping beginners gradually adjust their movements towards the ideal direction.

Motion Analysis
The system can analyze motion from raw video, video without background, or 3D human posture data.

Unsupervised Learning
The system learns standard features from professional players without domain-specific information or labeled data.
Benefit

Performance Enhancement
Helps players improve technique and performance effectively and quickly.

Minimize errors and injuries
Provides precise hints and instructions to minimize errors and risk of injury.

Personalization
Meets each player's specific needs and goals, thereby optimizing the training process.

Convenience
Easily access and manage information through the mobile app, helping players track progress and receive feedback
